PVC Pelletizing Line
- Direct supply from the manufacturer
- Whatapp number：+86-13921980514
- E-mail：sevenstarsgroup@yeah.net
Detail
Product Description:

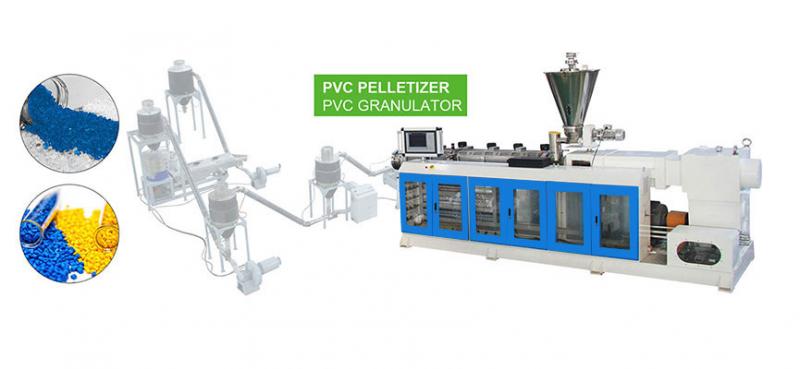

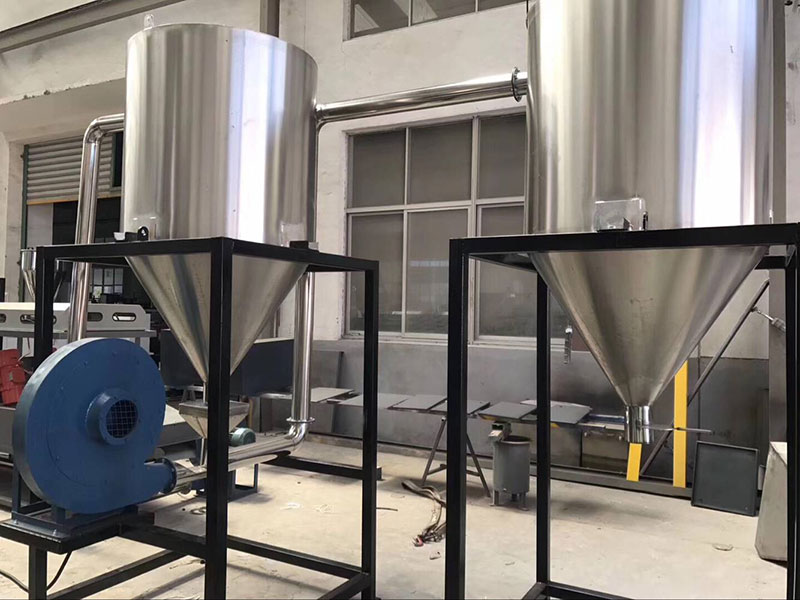

PVC pellets hot-cutting pelletizing line is mainly used to granulate the material of rigid PVC, soft PVC and waste PVC. It adopts die-face hot-cutting method, use pneumatic conversion and strong-wind blowing. The production capacity is from 100kg/h to 800kg/h. The precision of granulation is with good performance, high efficiency, installation and operation are easy and convenient.
Features of PVC hot cutting pelletizing line:
1. Advanced equipment, precise pelletizing and high producing capacity.

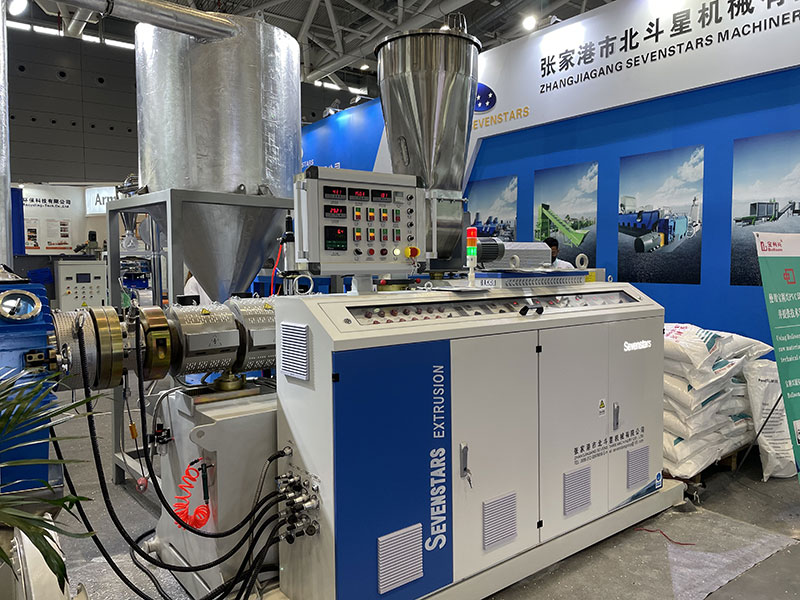

2. Conical double -screw extruder, very suitable to process PVC powder with high capacity.

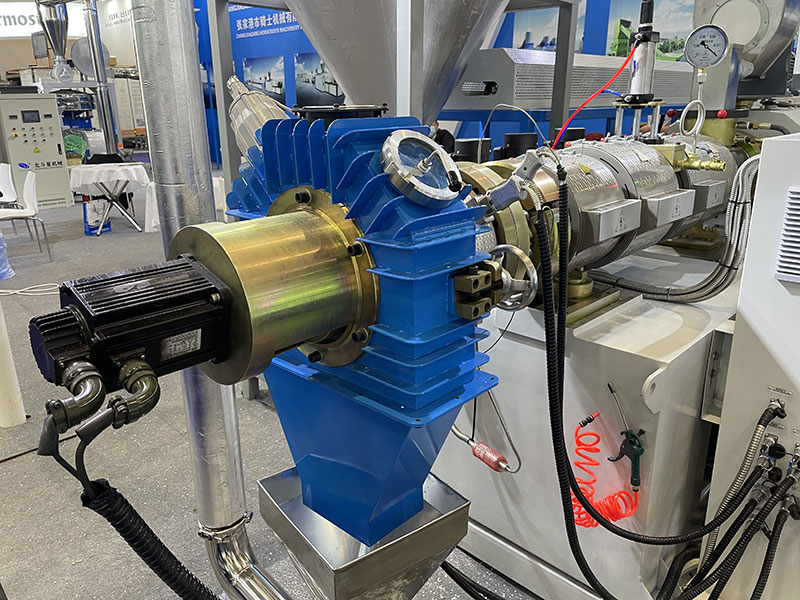

3. Pelletizing type: hot-cutting on mould face, even cutting ensures good pellets shape.

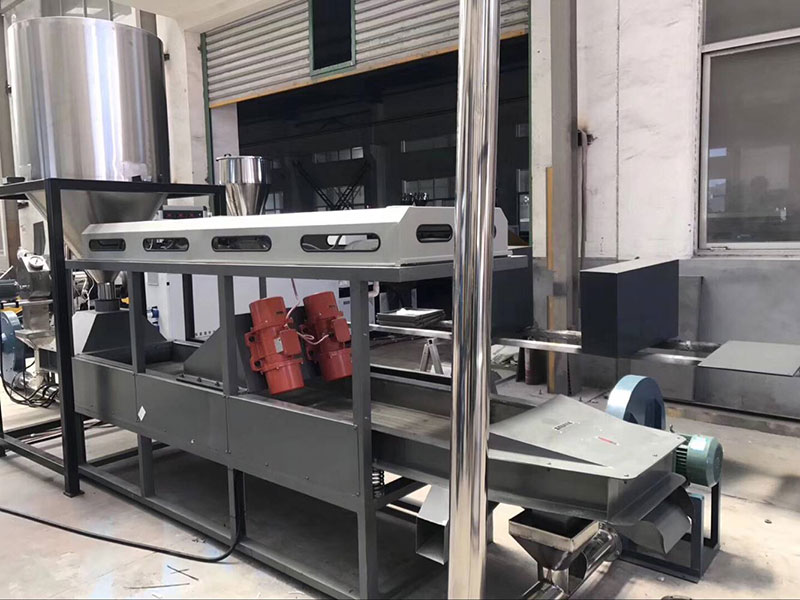

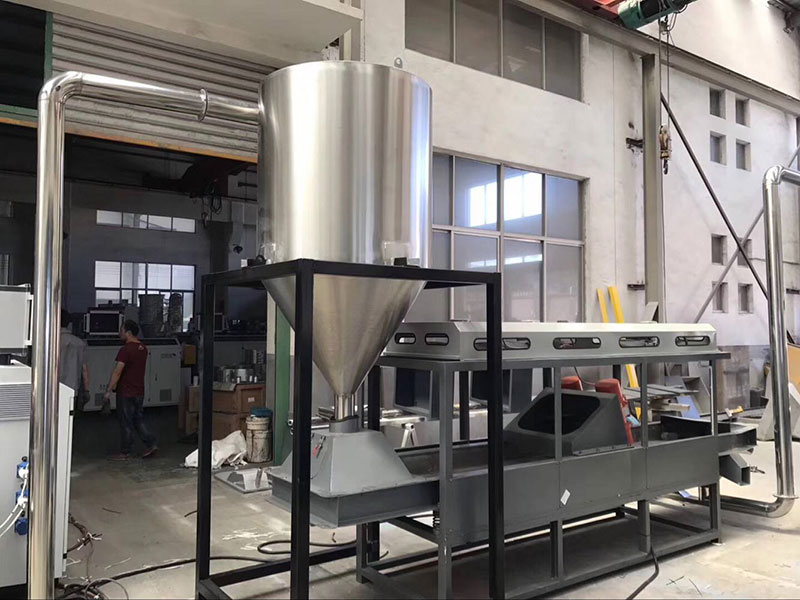

4. Auxiliary machine: pellets cooling u& classifying.
According to customer’s materials formulation,we choose the screw with most reasonable structure,with the aim of reaching the best plastication status,as well as good material floating quality.
Main Techincal Parameter of PVC hot cutting pelletizing line:
| Model |
SJZ-51/110 |
SJZ-65/132 |
SJZ-80/156 |
SJZ-92/188 |
|
Screw Diameter(mm) |
51/110 |
65/132 |
80/156 |
92/188 |
|
Screw Quantity(mm) |
2 |
2 |
2 |
2 |
|
Screw Speed(rpm) |
1-34.7 |
1-34.7 |
1-36.9 |
1-32.9 |
|
Effective Screw Working Length(mm) |
1070 |
1440 |
1800 |
2500 |
|
Main Motor Power(kw) |
18.5 |
37 |
55 |
90 |
|
Barrel Heating Power(kw) |
18 |
24 |
36 |
86.8 |
|
Output(kg) |
80-150 |
150-250 |
250-400 |
500-600 |
|
Center Height(mm) |
1000 |
1000 |
1000 |
1200 |
|
Weight(kg) |
3500 |
4000 |
5000 |
10000 |
|
Dimension(mm) |
3620×1050×2157 |
4235×1520×2450 |
4750×1550×2460 |
6725×1550×2860 |
