Detail
Main Technical Features

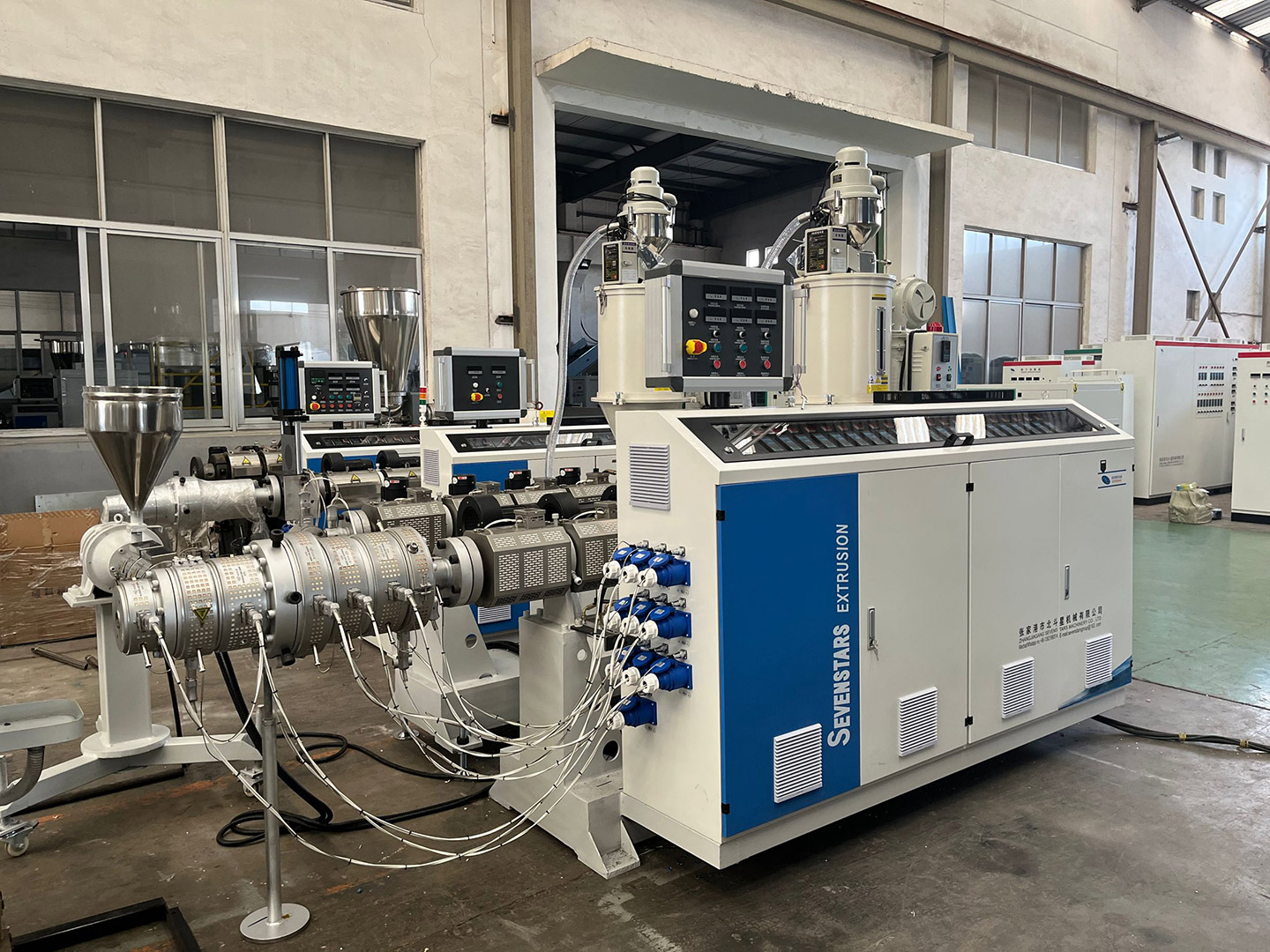

- SJ65X33ASingle Screw Extruder: SIEMENS micro-computer control system.
- SJ25X25 Single Screw Extruder: Specially used for co-extrusion of 1-4 color stripe(s).
- Double cavity Die Head: Lattice basket type and spiral type die head for choice.

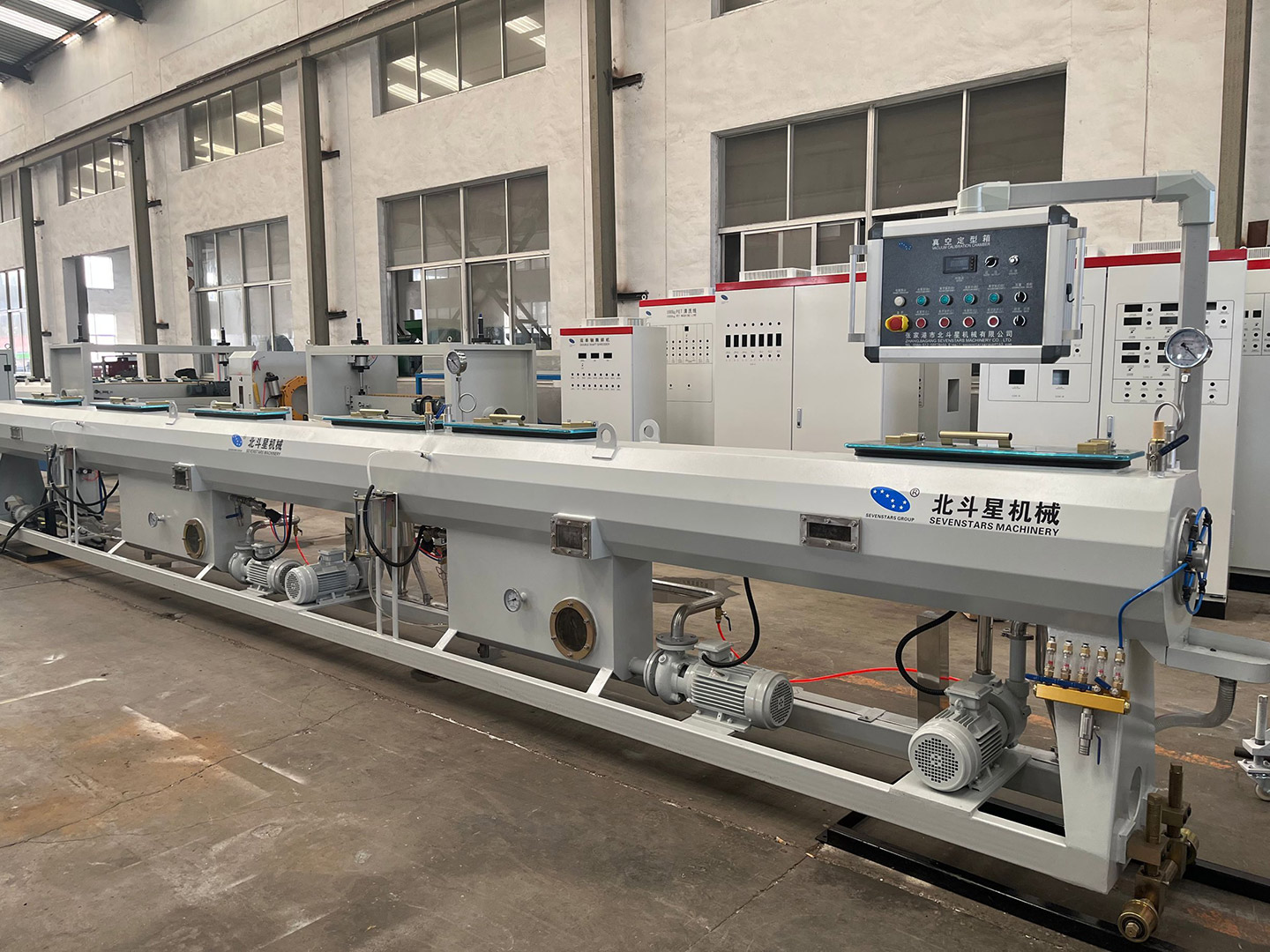

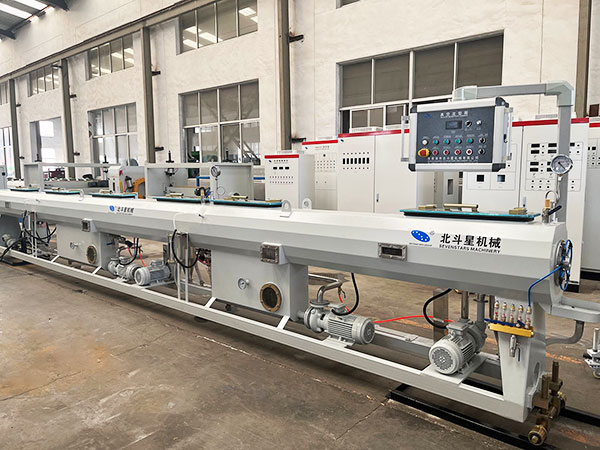

- ZDL63-9 Vacuum Tank: Adopting nylon half moon panel for good pipe roundness in high speed.
- PLX63 Spray Cooling Tank: Nozzles can make high speed vortex spray to good and even cooling on pipe surface.

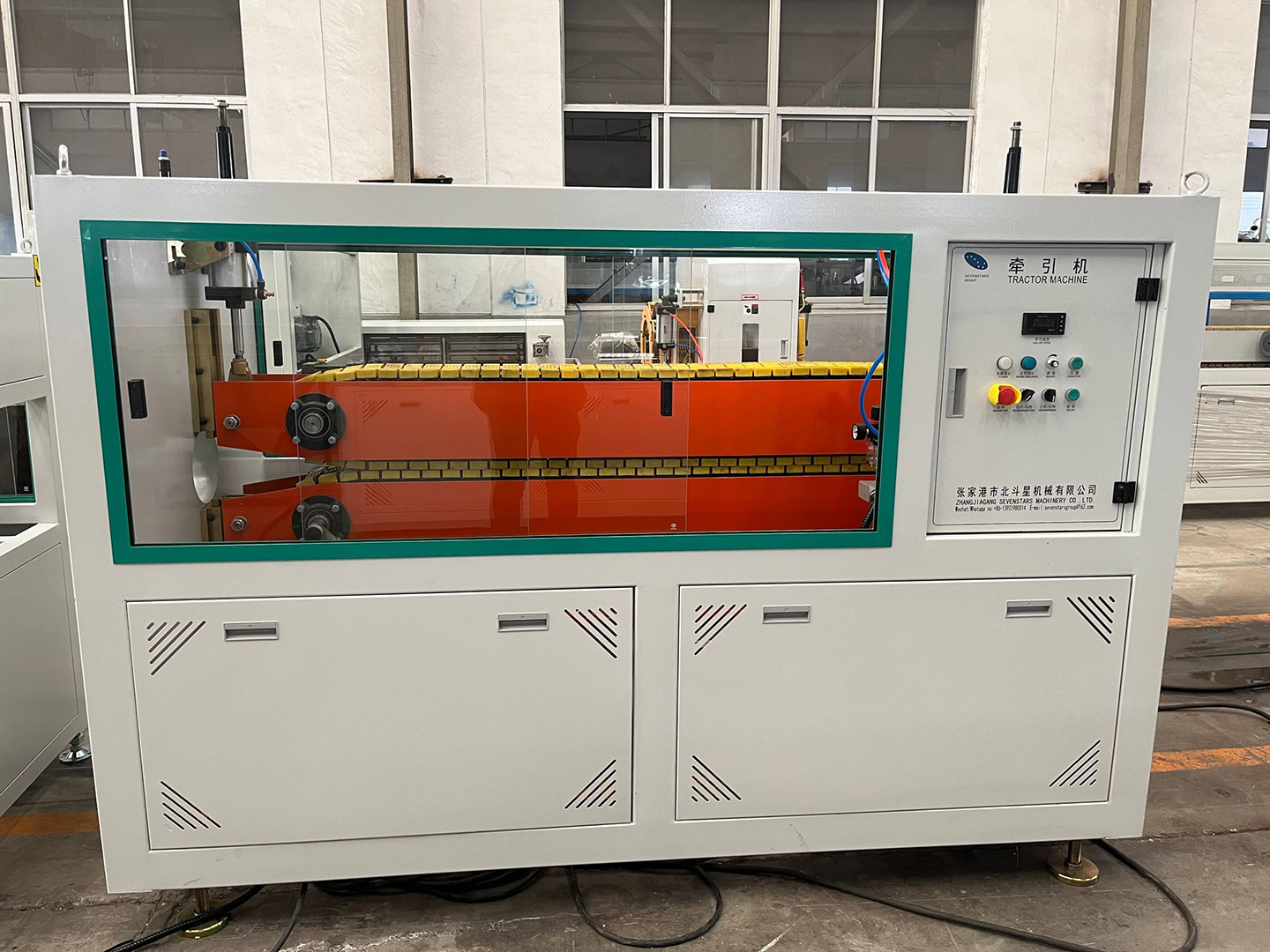

- QY63 Belt Haul-off：Up-and-Down belts are specially used for hauling small pipe in high speed. Haul speed: 0-25m/min.

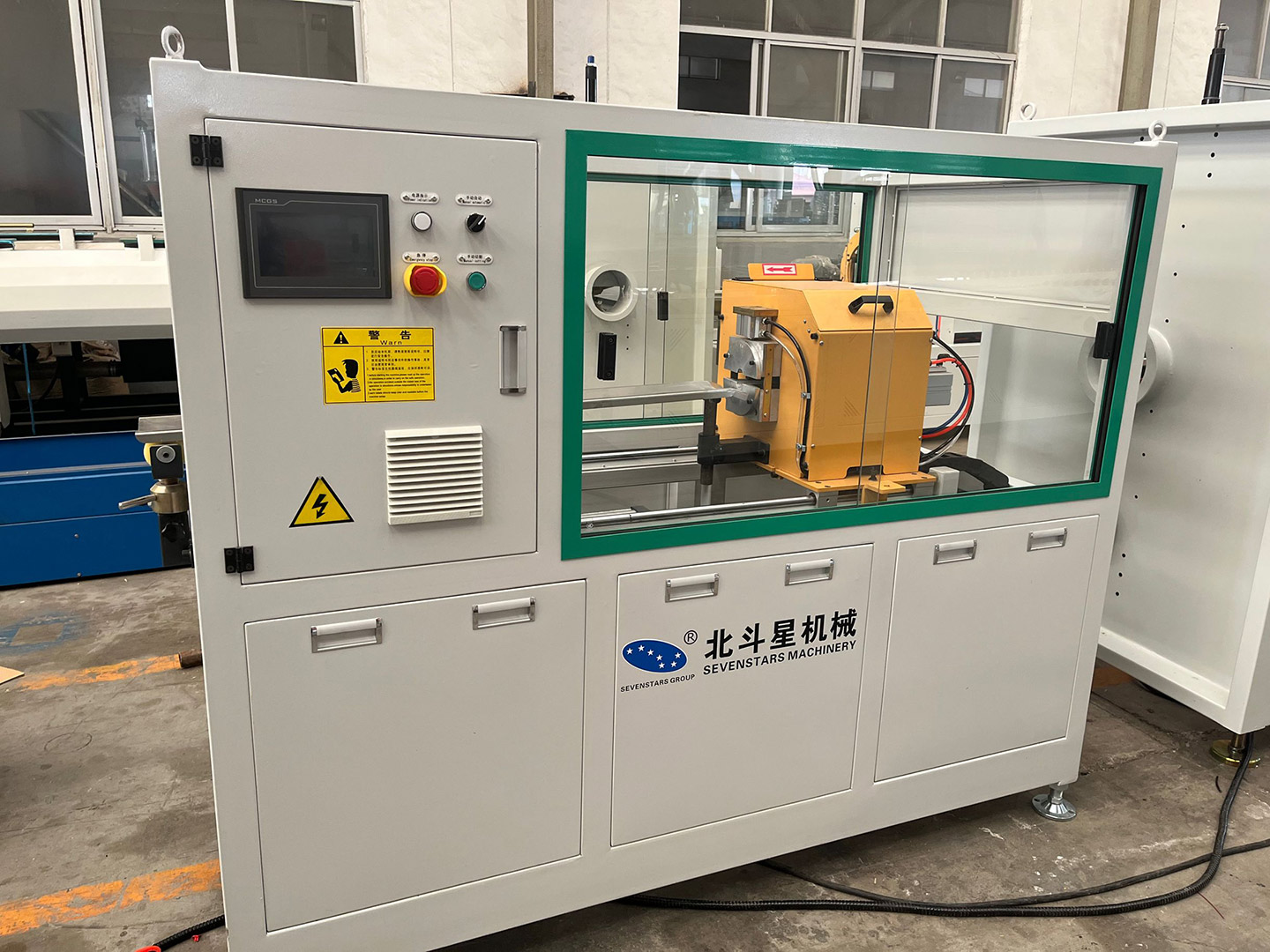

- QG63Dust-free Knife Cutter: Using annular knife cutting structure, realizing dust-free and low-noise cutting in high speed.

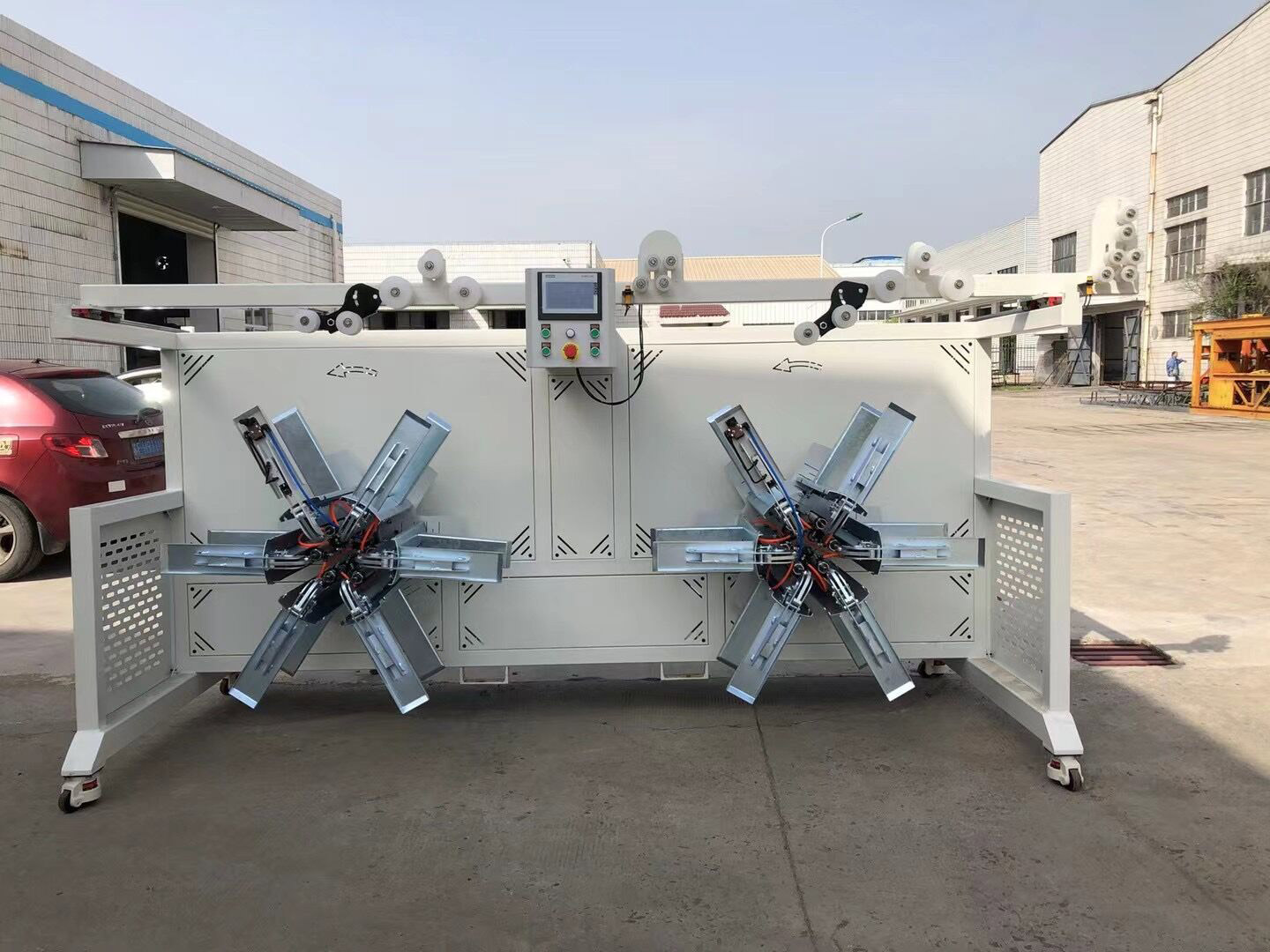

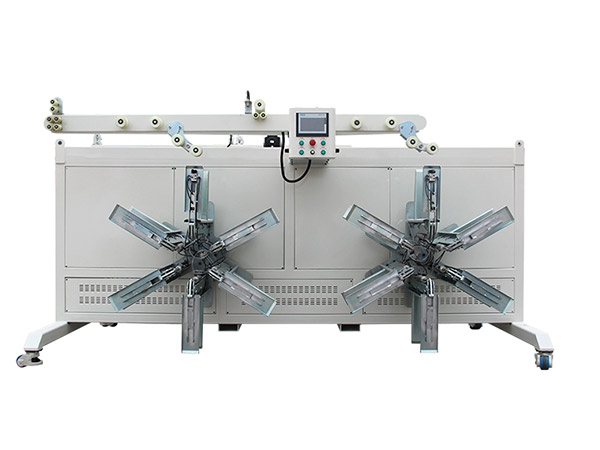

- JQ-63 and JQ32 Double disc Winder: frequency-conversion motor control, automatic alignment device. Winding speed 0-25m/min.
Main Technical Parameter
| Model |
Pipe Range(mm) |
Haul-off Speed(m/min) |
Total Length(m) |
Output Capacity(kg/h) |
Total Power(kW) |
|
PE/PE-RT |
Φ16-Φ63 |
2.0-25 |
42 |
200-250 |
110 |
