Plastic PVC Composite Roof Tile Making machine
- Direct supply from the manufacturer
- Whatapp number：+86-13921980514
- E-mail：sevenstarsgroup@yeah.net
Detail
Product features:

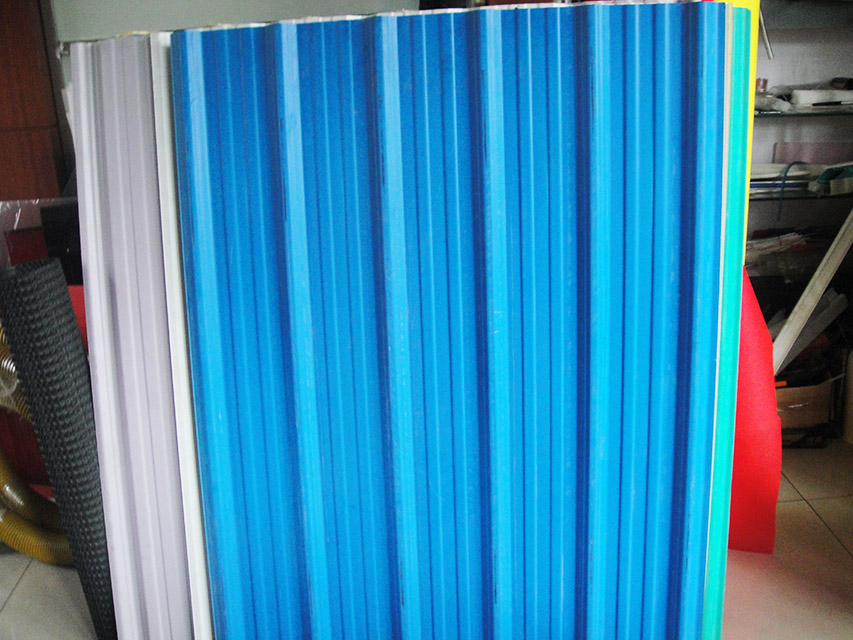

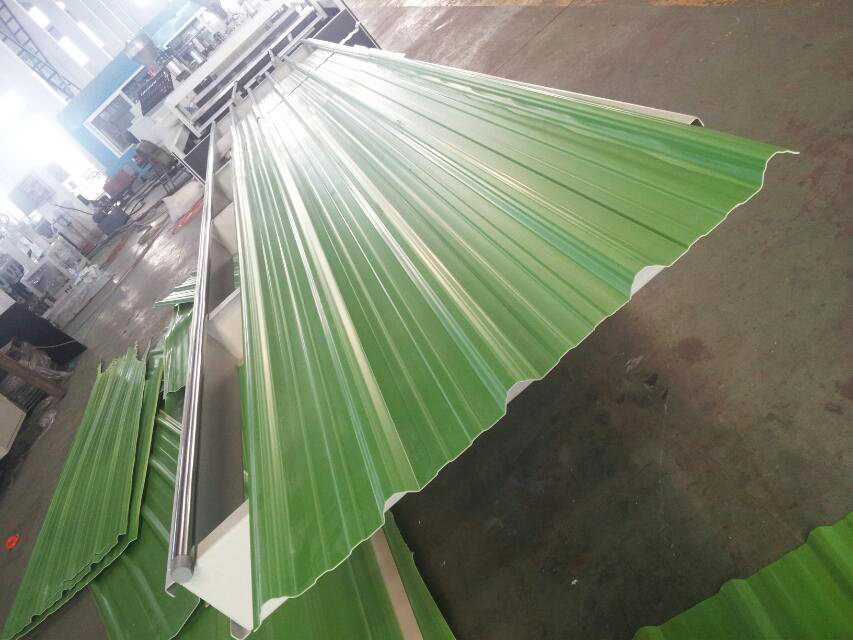

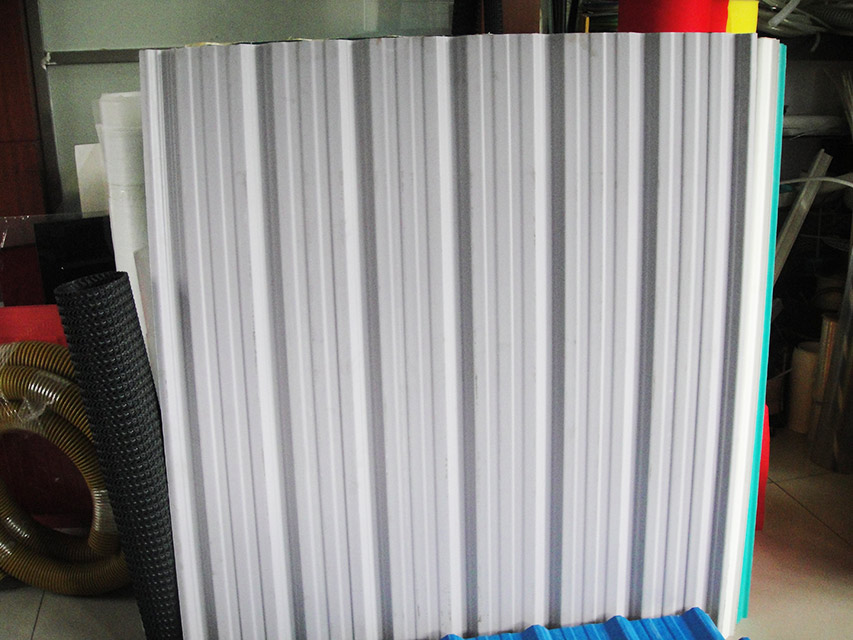

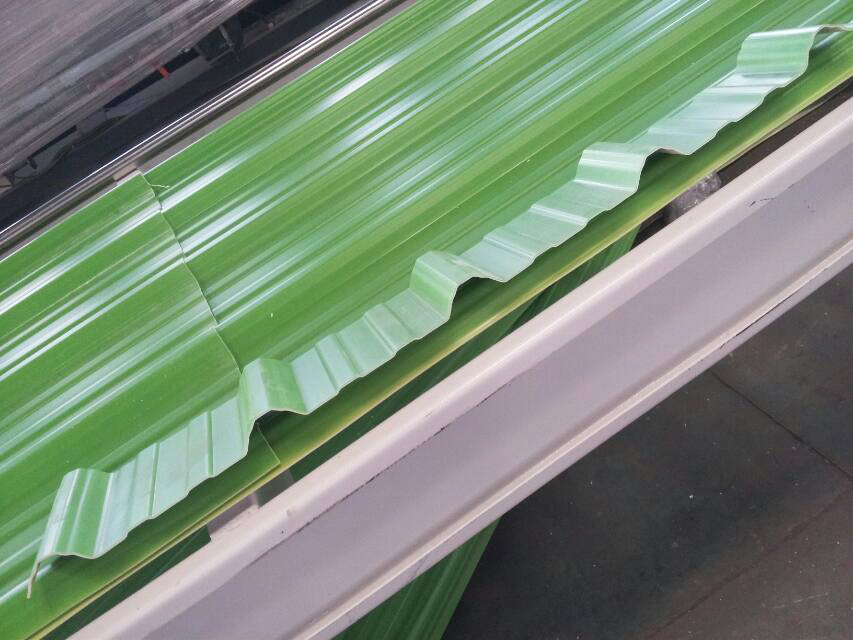

PVC+ASA glazed/corrugated composite resin tile should be the IDEAL REPLACEMENT of conventional asbestos and metal G.I. sheets which are not resistant to corrosion and weather under the high cost and short service life.
This new PVC composite roof tile production adopted advanced multilayer CO-EXTRUSION technology which well combine the different functions of raw materials(PVC+ASA) so that the tile can be anti-corrosive, fire retardant, eco-friendly, more durable, tenacious, easy to install and move, light weight as well as cost effective in installation (as less steel and less overlap), as per the efficiency and benefits it provides.
Apart from its numerous benefits, its salient features include heat insulation up to 35% (highly energy efficient) and it can withstand temperature up to 70 degrees Celsius to - 40 degrees Celsius which is very much suitable for YOUR MARKET.
Product application: Plastic Corrugated tile are used for Roofing, can be used for factories, warehouses, sheds, farmers market, hoardings, walls, temporary shops, sheds and other very suitable insulation
|

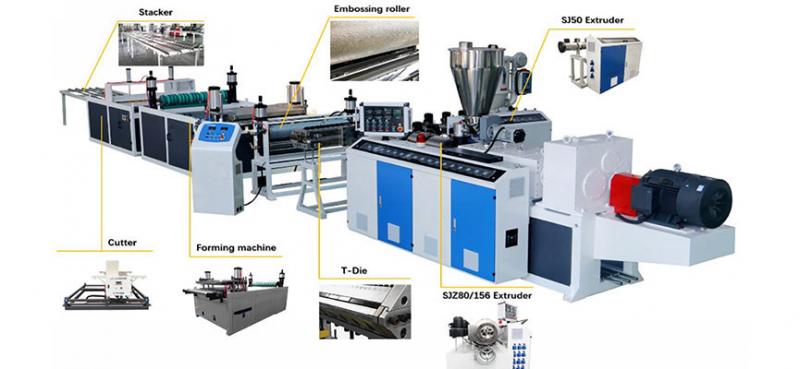

Main Machine List |
|||
|
No. |
Name |
Qty. |
Remark |
|
1 |
Screw loader for SJSZ 80/156 extruder |
1 |
|
|
2 |

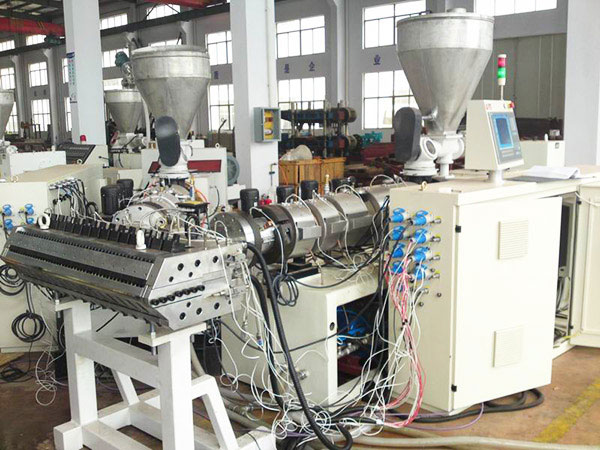

SJSZ 80/156 conical twin-screw extruder |
1 |
For the PVC layer |
|
3 |
Vacuum loader for SJ50 extruder |
1 |
|
|
4 |
drying hopper for SJ50 extruder |
1 |
|
|
5 |
SJ50/30 single screw extruder(ASA) |
1 |
For the ASA layer |
|
6 |
1300mm Mould unit |
1 |
Product width:1050mm |
|
7 |
Distributor |
1 |
|
|
8 |
Cutter |
1 |
|
|
9 |
Stacker |
1 |
|
|

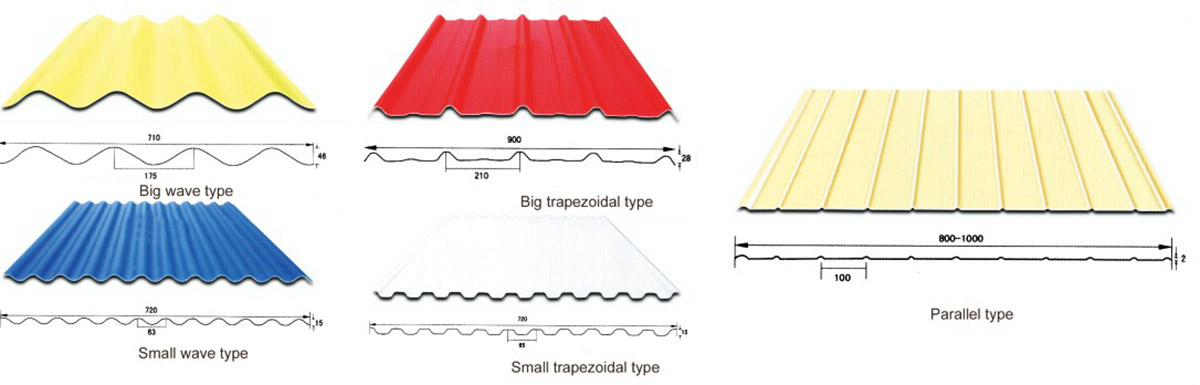

Equipment for corrugated roof tile |
|||
|
10 |
1050mm Calibration mould with trimming device and haul off unit |
1 |
For corrugated roof tile product |
|
11 |
Moulds of top ridge tile with forming machine |
1 |
|
|
Equipment for Spanish roof tile |
|||
|
12 |
Embossing roller |
1 |
For Spanish roof tile product |
|
13 |

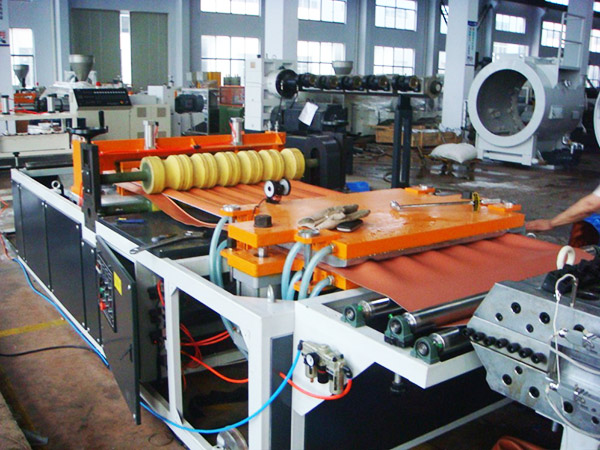

1050mm Forming machine with trimming device |
1 |
|
|
14 |
Moulds of top ridge tile ,hip ridge tile , three way and end ridge tile with forming machine |
4 |
|
|
Auxiliary equipment |
|||
|
15 |
Ridge tile Oven |
1 |
|
|
16 |
SRL-Z300/600 Mixer unit |
1 |
Capacity : 450-550kg/h |
|
17 |
Screw loader for SRL-Z 300/600 Mixer |
1 |
|
|
18 |
Crusher |
1 |
Power: 11kw |
|
19 |
Pulverizer |
1 |
Power: 45kw |
